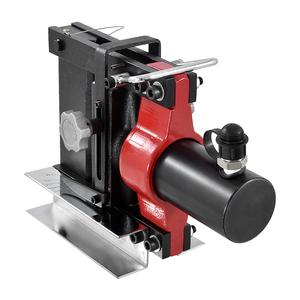

CB-150D Hydraulic Copper Busbar Bending Machine Vertical Metal Sheet Bending Tool Split Hydraulic Bending Machine 16T 150mm

Notice:


when the parcel arrived to your customs, please pay the tax and pick up
the parcel,we are not responsible for any customs duty or import tax.

If your place is remote, then need to pay 45usd .



Specifications:


Tonnage:16T
Bending width :150mm
Bending thickness:10mm
Bending capability:150*10mm
Minimum bending angle:90℃


1.Suitable for switch boxes, power strips, automatic control panel wiring project, the use
of separate and easy to carry;
2.Copper or aluminum row bending bending angle of 90 degrees to the right, without
prejudice to the copper material lighter;
3.Separate operation, with a variety of pump operation;
4.The curved Busbar maximum size of 10mm × 150mm;
5.The machine is equipped with adjustable balance bar to facilitate the use of small copper;
6.On the base of the unit is marked with the mark, the bending angle for an operator to
control their own;
7.The machine large tonnage, curvature of large, good electrical conductivity, minimum
bending angle of 90 °.
8.Type Horizontal latest output 20TON copper width 150mm Maximum thickness 10mm
9.CB-150D is a portable, while bending the copper bar, N-shaped or L-shaped card can be
tied to split out, you can row out unimpeded;
10.There is a predetermined angle of 90 degrees, 45 degrees directions, to avoid excessive design;
11.Match pump CP-700, CP-700-2A, DYB-63A, ZCB-700A


The machine must accompany the pump used together to buy the other pump.



Note:
Product color (red/yellow) shipped randomly.



Picture showing:


Specifications:
Hign-concerned Chemical: None
Origin: Mainland China
Automation: Manual
Model Number: CB-150D
Certification: ce
Machine Type: Press Brake
Material / Metal Processed: Brass / Copper
Power: HYDRAULIC
Raw Material: iron
product number: FC455
Tonnage: 16T
Bending width: 150mm
Bending thickness: 10mm
Bending capability: 150 * 10mm
Minimum bending angle: 90 ° C
