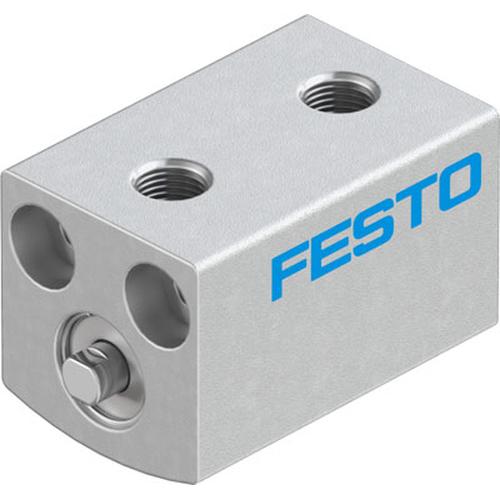

ADVC-4-5-P Item Code 526898 Short-stroke cylinder FESTO

Feature Value Shipping date View Stroke 5 mm Piston diameter 4 mm Cushioning P: Flexible cushioning rings/plates at both ends Assembly position Any Mode of operation double-acting Design structure Piston Piston rod Position detection No Operating pressure 2 ... 8 bar Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4] Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation) Corrosion resistance classification CRC 1 - Low corrosion stress Ambient temperature -20 ... 80 °C Theoretical force at 0.6 MPa (6 bar, 87 psi), retracting 5.7 N Theoretical force at 0.6 MPa (6 bar, 87 psi), advance 7.5 N Moving mass 0.25 g Product weight 4.2 g Mounting type with through hole with accessories Optional Pneumatic connection M3 Materials note Free of copper and PTFE Material cover Wrought Aluminium alloy Anodised Material seals HNBR NBR Material housing Wrought Aluminium alloy Anodised Material piston rod Wrought Aluminium alloy Anodised
