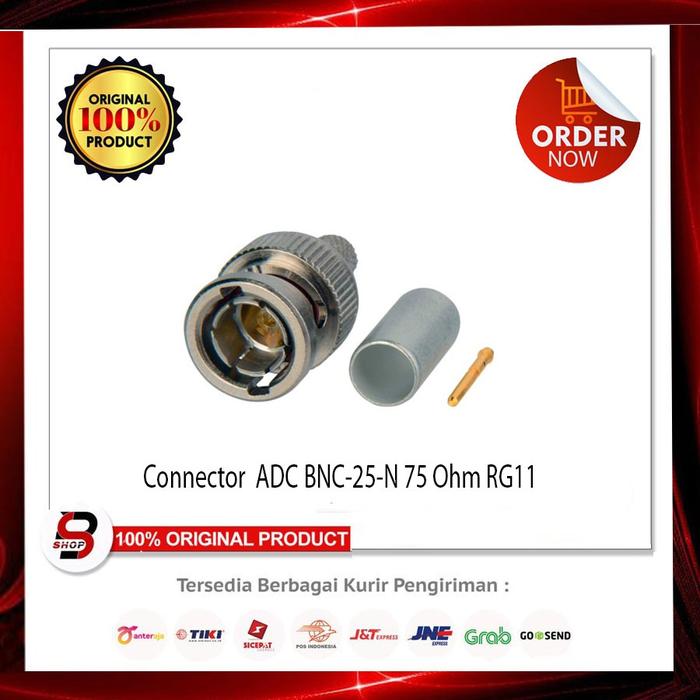

Connector BNC RG11 Canare BCP-C71A 75 Ohm Crimp-Style ACE-113 - ADC BNC-25-N
Rp27.500
Pilih merek: ADC BNC-25-N
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: CLEARANCE SALE 1
Ready Stock (Kami Selalu Update Stok Barang)
- 100% Original
- Penawaran Harga Termurah
- Banyak jenis Layanan Pengiriman
Varian:
ADC BNC-25-N
Canare BCP-C71A
BNC-25-N - Overview
ADC-Commscope
The Notched BNC-25-N is a straight BNC 75 Ohm plug connector for Belden 7731. The connector offers improved performance with true 75 Ohm characteristic impedance through the entire connector, gold-plated locking center conductor, 0.625" crimp sleeve for greater pulloff force, and 100 percent guided mating
The straight BNC plug connector is compatible with competitive crimp tools and die sets, with bulk packaging available. BNC plug connectors are universally accepted and are the most reliable method of terminating coaxial cable. They are designed to exceed the rigorous demands of today's broadcast environment, including SMPTE 259, 274, and 292 M standards.
Canare BCP-C71A- Overview
Connector Canare BCP-C71A 75 Ohm Crimp-Style BNC RG 11
Uk Pala Inner : +/- 1,37 mm
konektor BNC Canare ini BCP-C71A 75 ohm untuk
*Aplikasi: HD-SDI
*Serial Digital Video.
*Upgrade HDTV.
*NTSC Analog.
Untuk Kabel :
Belden : 7731A, 9064, 9292, 1617A, 9011
Keterangan:
Model: BCP-C71A
Crimp Die: TCD-7CA
Crimp Pin: BN1043A
Lengan: BN7021A
Imp .: 75 ohm
Bandwidth VSWR (Return Loss) DC ke 2GHz: 1.1 (26dB)
Bahan tubuh (Plating): Kuningan (Nickel)
Pusat Kontak Material (Plating): Kuningan (Emas)
Outer Hubungi Bahan: tembaga Berilium
Bahan Dielektrik: PTFE
Silahkan Di Order !!!
- 100% Original
- Penawaran Harga Termurah
- Banyak jenis Layanan Pengiriman
Varian:
ADC BNC-25-N
Canare BCP-C71A
BNC-25-N - Overview
ADC-Commscope
The Notched BNC-25-N is a straight BNC 75 Ohm plug connector for Belden 7731. The connector offers improved performance with true 75 Ohm characteristic impedance through the entire connector, gold-plated locking center conductor, 0.625" crimp sleeve for greater pulloff force, and 100 percent guided mating
The straight BNC plug connector is compatible with competitive crimp tools and die sets, with bulk packaging available. BNC plug connectors are universally accepted and are the most reliable method of terminating coaxial cable. They are designed to exceed the rigorous demands of today's broadcast environment, including SMPTE 259, 274, and 292 M standards.
Canare BCP-C71A- Overview
Connector Canare BCP-C71A 75 Ohm Crimp-Style BNC RG 11
Uk Pala Inner : +/- 1,37 mm
konektor BNC Canare ini BCP-C71A 75 ohm untuk
*Aplikasi: HD-SDI
*Serial Digital Video.
*Upgrade HDTV.
*NTSC Analog.
Untuk Kabel :
Belden : 7731A, 9064, 9292, 1617A, 9011
Keterangan:
Model: BCP-C71A
Crimp Die: TCD-7CA
Crimp Pin: BN1043A
Lengan: BN7021A
Imp .: 75 ohm
Bandwidth VSWR (Return Loss) DC ke 2GHz: 1.1 (26dB)
Bahan tubuh (Plating): Kuningan (Nickel)
Pusat Kontak Material (Plating): Kuningan (Emas)
Outer Hubungi Bahan: tembaga Berilium
Bahan Dielektrik: PTFE
Silahkan Di Order !!!
