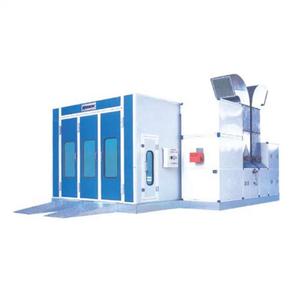

GUT SPRAY BOOTH DOUBLE BLOWER WITH SIDELIGHT KW1900532

Type Spray Booth Double Blower
Benefit
More efficient and stability of flow rate
Safety with emergency exit door
large dimension will be easy to spraying for operator
Easy to use equip with timer heater
Realiable using rielo burner
Features
Double Blower
Equip with Emergency Door
Big size of Combi booth
Included with hour meter,Heater timer
Limiter of heater
double side of lamp
Specification
Outside Dimension 7000 x 5560 x 3430 mm
Inside Dimension 6900 x 4000 x 2800 mm
Door Width 3000 mm
Intake Capacity 24000 Metric Cubic/ Hour
Intake Power 2 X 4 kW
Type of inlet fan Centrifigal Fan
First filter for inlet side EU4
Secondary Filter for inlet side Ceiling Filter (EU-5)
Ceiling Frame Material Powder coating steel
Exhaust Capacity 15000 Metric Cubic/Hour
Exhaust Power 5. 5 kW
Type of Exhaust fan Centrifigal Fan
First filter for outlet side EU-3
Air Damper on outlet side (manual)
Lighting Powe r (upper lights) 40 X 36 WATT
Lighting Power (R+L side lights) 20 x 20 WATT
Main Structure EPS
Brand of Burner Rielo
Heat Exchang er Material SUS 304
Brand of actuator Belimo (electrical)
Hourme ter Provided
Timer Provided
Total Power 18.000 watt
