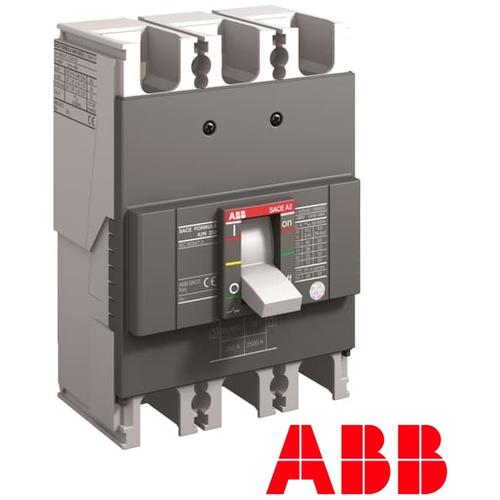

MCCB ABB TMF A2B 225A 18KA 3P 1SDA066552R1

BREAKER FORMULA A2B 250 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMF R 225-2250 A Dimensions Product Net Width:105 mm Product Net Height:150 mm Product Net Depth / Length:60 mm Product Net Weight:1.385 kg Container Information Package Level 1 Units:1 piece Package Level 1 Width:162 mm Package Level 1 Height:120 mm Package Level 1 Depth / Length:155 mm Package Level 1 Gross Weight:1.35 kg Package Level 1 EAN:8015644693251 Environmental RoHS Status:Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 Additional Information Electrical Durability:4000 cycle Mechanical Durability:Nr. Operations 10000 cycle Number of Poles:3 Opening Time:CB with SOR 15 ms CB with UVR 15 ms Power Loss:at Rated Operating Conditions per Pole 14 W Product Main Type:SACE FORMULA Product Name:Moulded Case Circuit Breaker Product Type:CB Rated Current (In):Main Circuit 225 A Rated Impulse Withstand Voltage (Uimp):6 kV Rated Insulation Voltage (Ui):690 V Rated Operational Voltage:550 V AC 250 V DC Rated Service Short-Circuit Breaking Capacity (Ics):(240 V AC) 12.5 kA (380 V AC) 9 kA (415 V AC) 9 kA (440 V AC) 7.5 kA (480 V AC) 7.5 kA (500 V AC) 2.5 kA (250 V DC) 2 Poles in Series 9 kA Rated Ultimate Short-Circuit Breaking Capacity (Icu):(240 V AC) 25 kA (380 V AC) 18 kA (415 V AC) 18 kA (440 V AC) 15 kA (480 V AC) 15 kA (500 V AC) 5 kA (250 V DC) 2 Poles in Series 18 kA Rated Uninterrupted Current (Iu):250 A Release:TMF Release Type:TM Short-Circuit Performance Level:B Standards:IEC Sub-type:A2 Terminal Connection Type:Front Version:F
