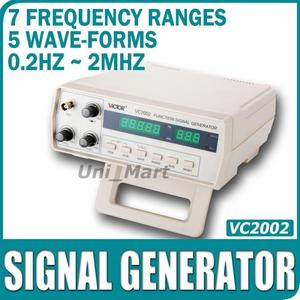

Risepro VICTOR VC2002 Function Signal Generator (0.2 Hz ~ 2 MHz)

Risepro VICTOR VC2002 Function Signal Generator (0.2 Hz ~ 2 MHz) 7 Frequency

Brief Description
This Professional Function Generator (VC2002) is an accurate instrument made by VICTOR brand which can produce function wave-form such as sine wave, square wavee, rectangle wave, sawtooth wave and triangle wave. And the frequency and amplitude can be adjusted continuously.
This is an ideal equipment for engineers, electric laboratory, production lines and teaching purposes.

Features
It's convenient to operate and use with high intelligence for using the single microprocessor to control running and displaying.
Large scale single integrated accuracy function generator leads to super performance.
Designed by large scale integrated circuit to insure the high reliability and high stability.
High Precision with frequency range 0.2 Hz to 2 MHz
Output signal wave-form: sine wave, square wave, rectangle wave, sawtooth wave and triangle wave

Specifications
Output frequency: Seven Frequency range between 0.2 Hz and 2 MHz:
0.2 Hz - 2 Hz
2 Hz - 20 Hz
20 Hz - 200 Hz
200 Hz - 2 kHz
2 kHz - 20 kHz
20 kHz - 200 kHz
200 kHz - 2 MHz
Output signal impedance: 50
Output signal wave-form: sine wave, square wave, rectangle wave, sawtooth wave and triangle wave.
Output signal amplitude (peak-peak value):
Non-attenuate (2 Vp-p ~ 20 Vp-p) 20% continuously adjustable
Attenuate 20dB (0.2 Vp-p ~ 2.0 Vp-p) 20% continuously adjustable
Attenuate 40dB (20 mVp-p ~ 200 mVp-p) 20% continuously adjustable
The above are measured with load 1 M, the output signal amplitude will be half of standard at 50 load.
Function output symmetry adjust scope: 20% ~ 80% (10%).
Output signal features:
Sine wave distortion: 2%
Triangle wave linear: 99% (10%-9
