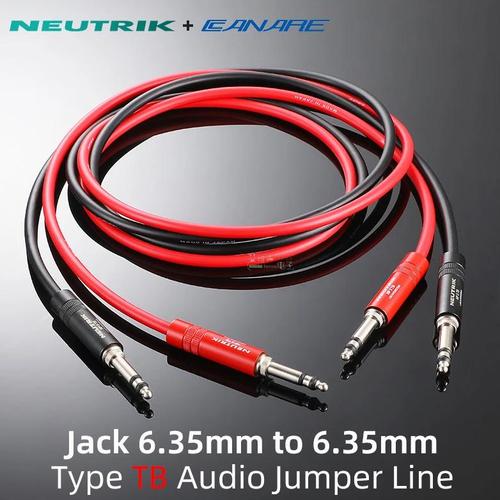

Neutrik Canare Audio Jumper Patch Panel Cable NPP-TB 612A 312A/320A/EIA L-4E6S Line NP3TB 6.35mm jack TBPlug 1/4 B-Gauge BPO316

Neutrik Canare Audio Jumper Patch Panel Cable NPP-TB 612A 312A/320A/EIA L-4E6S Line NP3TB 6.35mm jack TBPlug 1/4 B-Gauge BPO316
1005004615682149

? Pre-Order +/- Sampai Alamat 10-15 Hari
? FREE ONGKIR+PAJAK
?? Garansi uang kembali jika Rusak, Beda Produk

Shielding : Braid
Outer Diameter : 6.0mm
Type : Audio Extension Cord
Connector B : male,jack
Connector A : female,male,jack
Model Number : L-4E6S,NP3TB
Gender : Male-Female
Brand Name : Canare
Origin : Mainland China
Plug Type : 6.35mm TB Plug
Plug Standard : 1/4" B-Gauge Standard (BPO316)
Incompatible Plug : Standard 1/4" Jack (acc.EIA RS453) and Jumper Patch Panel
Plug Cable O.D. : 4 - 7 mm
Plug Wiresize : 1 mm,18 AWG
Plug Wiring : Solder contacts
Plug Contact Plating : 2 m Ni (Su)
Plug Contacts : Brass
Plug Insert : Polyamide


Technical Information

Product

Title: Neutrik
NP3TB-B / NP3TB-R

Connection Type: Plug

Gender: Male

Color: Black, Red

Electrical

Plug Dielectric Strength: 1 kVdc

Contact Resistance: depends on mating connector m

Insulation Resistance: > 2 G (initial)

Rated Current per Contact: depends on mating Connector A

Rated Voltage: 1000 mating cycles

Wiresize : 1 mm

Wiresize : 18 AWG

Wiring: Solder contacts

Material

Bushing: Polyacetal (POM) + PU

Contact Plating: 2 m Ni (Su)

Contacts: Brass (CuZn39Pb3)

Insert: Polyamide (PA 6.6 30 % GR)

Shell: Brass (CuZn39Pb3)

Shell Plating: Black

Strain Relief: Polyacetal (POM)

Environmental

Standard compliance: B-Gauge BPO316

Solderability: Complies with IEC 68-2-20

Temperature range: -20 C to +65 C

Product

Title: CANARE
L-4E6S

cable

AWG: 0.20(24)

Conductor Composition: 40/0.08A

Twist Pitch: 20mm

Shield Coverage (braid): >94%

Cond. D.C.R.:

9.8/100m

Shield D.C.R.:

3.
