SENSOR INFRARED IR ACTIVE DUAL BEAM FENCE PERIMETER PAGAR INFRA MERAH

MODEL A
Specifications:
Power Supply: DC 12V to 24V
Work current : 50MA
temperature : 50~ (-30)
Water Proof, UV proof
Size : 49.2 x 76 x 21.6MM
Detector Area: indoor 20m. Outdoor 10m
Made in PRC
MODEL B
Detektor Infra Merah/IR
Jarak perlindungan hingga 150m
mempunyai sistem deteksi double cross check,
bila 1 sinar IR yg hanya deteksi seperti daun jatuh, burung saklar tidak akan aktif/ON
Saklar akan aktif bila 2 sinar IR terblokir
Description

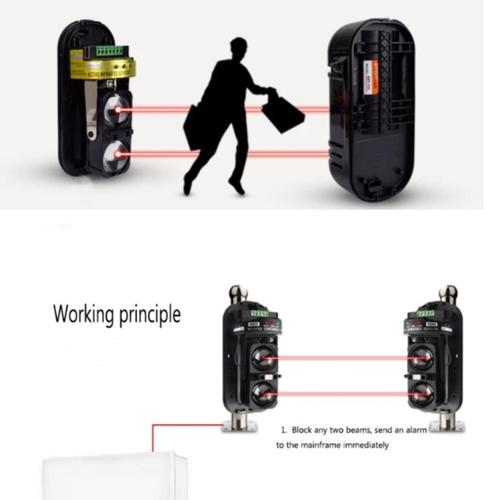

Waterproof Dual Beam Sensor Active Infrared Intrusion Detector IR 20m~150m Outdoor Perimeter Wall Barrier Fence for GSM alarm
Infrared transmission distance is 20-150m
Light-source: Infrared digital pulse
Response speed: 50-700m/s
Alarm output-normal: Normal close and normal open(NC&NO), contact point capacity, AC/DC30V 0.5mA Max
Operating voltage: DC 12V—24V, AC 10-18V
Operating temperature: -25°C—55°C
Operating humidity : 5%—95% (RH)
Tamper output: contact point output NC,capacity DC 24V 0.5Amax
Horizontal angle adjustable: 180°(±90°)
Vertical angle adjustable: 20°±10°
