Autel Robotics EVO II Pro RTK V3 - Paket A
Rp68.700.000
Pilih paket: Paket A
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Semua Etalase

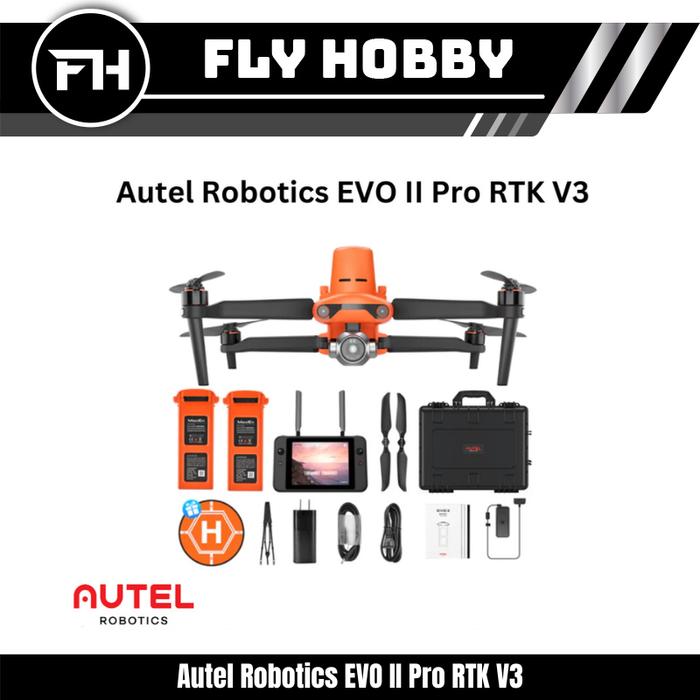

Autel Robotics EVO II Pro RTK V3
VARIAN PAKET:
-Paket A : Standard Box
-Paket B : Standard Box+Memori 64gb
Untuk pembelian include setup dan training dapat menghubungi CS kami
Free Pair of Propeller Guards and landing pad
Centimeter-Level Positioning
Support PPK
RTK Base Station
NTRIP RTK Network
Flight Profiles Save
Rectangular or Polygon Missions
1" CMOS Sensor Gimbal Camera
360° Obstacle Avoidance
38 Minutes Flight Time
15km Video Transmission Range
Aircraft
Takeoff Weight 1237g±0.5g（EVO II Pro RTK V3)
Max takeoff weight 4.41 lbs (1999 g)
Size(L*W*H) 9.1*5.1*5.6 inches; 230*130*143mm(folded);
18*22*4.3 inches 457*558*143 mm(unfolded)
Wheelbase 15.63 inches (397 mm)
Maximum Takeoff Altitude 7000 m
Max ascent speed 8 m/s (Ludicrous)
Max descent speed 4 m/s (Ludicrous)
Max horizontal flight speed 20m/s (Ludicrous)
Max flight distance (no wind) 21 km
Max tilt angle 33° (Ludicrous)
Max angular velocity 120°/s
Max flight time (no wind) 36 min
Max hovering time (no wind) 32 min
Operating temperature range 14°F to 104°F (-10℃ ~ 40℃)
Maximum resistance to wind 27mph, 12 m/s (Take-off and landing)
Operating frequency 902-928MHz (FCC Only)
2.400-2.4835GHz
5.725-5.850GHz
Transmission power 900M FCC/ ISED：≤31dBm 2.4G
FCC/ ISED：≤32dBm
SRRC/CE/MIC/RCM：≤20dBm 5.8G (non-Japan) ; 5.7G (Japan)
FCC/ISED/SRRC/MIC：≤33dBm
CE/ RCM：≤14dBm
Hovering accuracy When RTK is enabled and working normally:
Vertical: ±0.1 m; Horizontal: ±0.1 m Vertical: ±0.1 m (when the visual positioning is working normally);±0.5 m (when GNSS works normally)
Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GNSS works normally)
Image position compensation The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively.
Internal storage 8GB
VARIAN PAKET:
-Paket A : Standard Box
-Paket B : Standard Box+Memori 64gb
Untuk pembelian include setup dan training dapat menghubungi CS kami
Free Pair of Propeller Guards and landing pad
Centimeter-Level Positioning
Support PPK
RTK Base Station
NTRIP RTK Network
Flight Profiles Save
Rectangular or Polygon Missions
1" CMOS Sensor Gimbal Camera
360° Obstacle Avoidance
38 Minutes Flight Time
15km Video Transmission Range
Aircraft
Takeoff Weight 1237g±0.5g（EVO II Pro RTK V3)
Max takeoff weight 4.41 lbs (1999 g)
Size(L*W*H) 9.1*5.1*5.6 inches; 230*130*143mm(folded);
18*22*4.3 inches 457*558*143 mm(unfolded)
Wheelbase 15.63 inches (397 mm)
Maximum Takeoff Altitude 7000 m
Max ascent speed 8 m/s (Ludicrous)
Max descent speed 4 m/s (Ludicrous)
Max horizontal flight speed 20m/s (Ludicrous)
Max flight distance (no wind) 21 km
Max tilt angle 33° (Ludicrous)
Max angular velocity 120°/s
Max flight time (no wind) 36 min
Max hovering time (no wind) 32 min
Operating temperature range 14°F to 104°F (-10℃ ~ 40℃)
Maximum resistance to wind 27mph, 12 m/s (Take-off and landing)
Operating frequency 902-928MHz (FCC Only)
2.400-2.4835GHz
5.725-5.850GHz
Transmission power 900M FCC/ ISED：≤31dBm 2.4G
FCC/ ISED：≤32dBm
SRRC/CE/MIC/RCM：≤20dBm 5.8G (non-Japan) ; 5.7G (Japan)
FCC/ISED/SRRC/MIC：≤33dBm
CE/ RCM：≤14dBm
Hovering accuracy When RTK is enabled and working normally:
Vertical: ±0.1 m; Horizontal: ±0.1 m Vertical: ±0.1 m (when the visual positioning is working normally);±0.5 m (when GNSS works normally)
Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GNSS works normally)
Image position compensation The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively.
Internal storage 8GB
