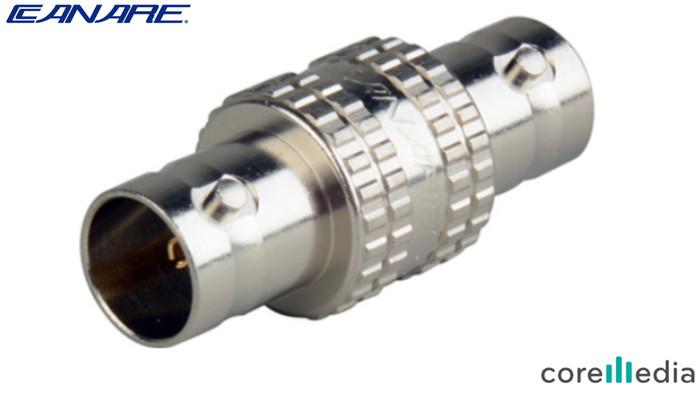

PROMO Sambungan Kabel Coaxial BNC SDI Female to Female Canare BCJ-JK PRODUK TERBATAS

BUDAYAKAN MEMBACA jika barang memiliki identitas warna atau ukuran tulis di catatan sebelum melakukan order sekalian cantumkan warna cadangan jika warna primary yang di inginkan kosong kami tidak repot konfirmasi lagi no komplain no return membeli = menyetuju Sambungan Kabel Coaxial BNC SDI Female to Female Canare type BCJ-JK 75 Ohm untuk konektivitas yang ditingkatkan dan mendukung 12G-SDI berfungsi untuk menyambungkan dua kabel coaxial connector BNC Male. Product Highlights: - Supports 12G-SDI - Connects Two Male BNC Cables Feature: - Compatible with 12G-SDI - Return loss of ≥26 dB at 3 GHz and ≥15 dB at 12 GHz Specifications : 1. Electrical characteristics - Return loss: 26dB or more(0 ~ 3GHz) / 20dB or more(0 ~ 6GHz) / 15dB or more(0 ~ 12GHz) - Nominal impedance 75Ω unbalanced 2. Mechanical characteristics - Intermatability: To be engaged without any abnormality - Strength of coupling mechanism: Body shall not be disconnected or no deformation shall be made - Attachment strength: There shall be no break or damage on each part of connector. 3. Environmental characteristics - Corrosion resistance (Salt Mist): 50mΩ or less - Operating temperature: -40°C ~ +85°C - Operating humidity: ~ 90% TERIMA KASIH TELAH MENGUNJUNGI TOKO KAMI
