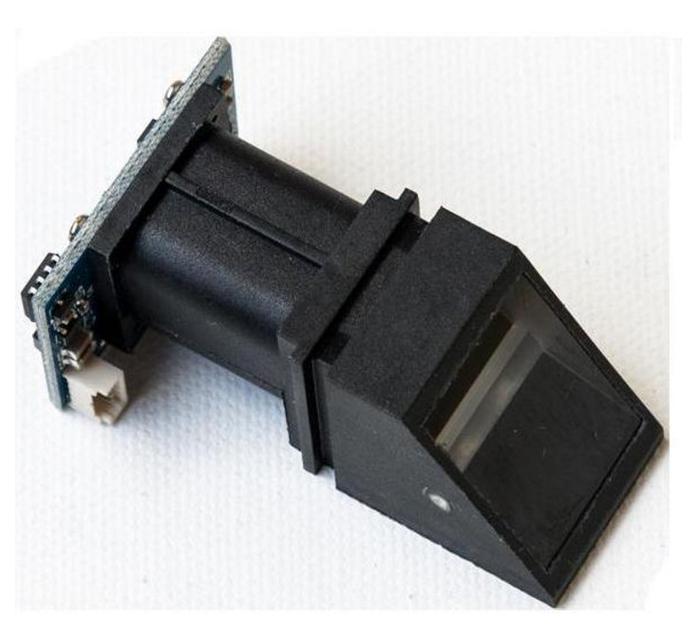

R305 Fingerprint Reader Recognition Sensor Sidik Jari UART

1. Integrated image collecting and algorithm chip together, ALL-in-One
2. Fingerprint reader can conduct secondary development, can be embedded into a variety of end products


chipset(Synochip AS601);
power_supply(4.2V ~ 6V);
interface(UART Serial TTL && USB);
baudrate[9600 ~ 115200];
max_finger_capacity[960];
max_finger_time{0.3s];

serial_pins[4]={RD-TD-VCC-GND};
usb_pins[4]={GND,D+,D-,VCC};
size[545mm*206mm*238mm];

3. Users can conduct secondary development, can be embedded into a variety of end products, such as: access control, attendance, safety deposit box, car door locks
4. Low power consumption, low cost, small size, excellent performance
5. Professional optical technology, precise module manufacturing technics
6. Good image processing capabilities, can successfully capture image up to resolution 500 dpi

7.Connect to any microcontroller or system with TTL serial, and send packets of data to take photos, detect prints, hash and search.



Fingerprint sensor type: Optical
Sensor Life: 100 million times

Static indicators: 15KV

Backlight: bright red

Interface: USB1.1/UART(TTL logical level)

RS232 communication baud rate: 4800BPS~115200BPS changeable

Dimension: 55*32*21.5mm

Image Capture Surface 1518(mm)

Verification Speed: 0.3 sec

Scanning Speed: 0.5 sec

Character file size: 256 bytes

Template size: 512 bytes

Storage capacity: 980

Security level: 5 (1,2,3,4,5(highest))

False Acceptance Rate (FAR) :0.0001%

False Rejection Rate (FRR): 0.1%

Resolution 500 DPI

Voltage :4.2-6.0 VDC

Working current: Typical 90 mA, Peak 150mA

Matching Method: 1: N

Operating Envirement Temperature: -20 to 45 centigrages.
