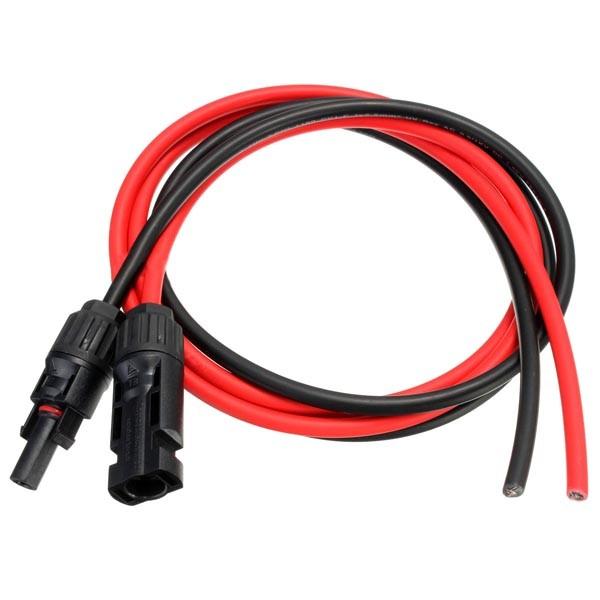

3.5 FT Black MC4 10AWG MC4 Solar Stripping Cable Connector Market Ol

3.5 FT Black MC4 10AWG MC4 Solar Stripping Cable Connector Market Ol Kami Menyediakan Berbagai Macam Barang yang Anda Butuhkan - Item Pre-Order (6 - 10 Hari). - Semua Produk Berkualitas. - Pengiriman Cepat (Tergantung Alamat Pengiriman). - Hubungi Kami Untuk Menanyakan Ketersediaan Barang. Happy Shopping ! 3.5 FT Black MC4 10AWG MC4 Solar Stripping Cable Connector Male Female Plug Features: Long service life, environmental protection. Suitable for solar power station, pv connector and pv junction box. Solar system and dedicated solar power cable. Specifications: Nominal cross section: 4 mm2 Model: PV1-F4mm Rated current: 34A Core number: single core Conductor: copper wire structure Conductor: stranded diameter: 2.6mm Insulation minimum wall thickness:0.5mm Sheath minimum wall thickness:0.5mm Finished wire diameter:5.8 + 0.1mm The conductor resistance (20 „ƒ) : 5.09 /km Test voltage:6.5/5 kV/min Rated temperature: -40~90 „ƒ Maximum conductor temperature: 120„ƒ Service life: 25 years (-40~90 C) Ated voltage: AC U DC:1.8kv. 0.6/1kv /U Working environment temperature: -40~90„ƒ Working voltage AC/DC (KV): 0.6~1.0/1.8 Weather resistance: UV Flame retardant: single vertical combustion (IEC60332-1) Solar test: HD605/A1 Finished cable ozone resistance test: EN50396 Smoke density: IEC61034, EN50268-2 Halogen acid release amount: EN50267-2-1 IEC670754-1 Length: Appro 101cm Package included: 1 x MC4 Connectors Red Black 3.5 FT Details MOS-1021614
