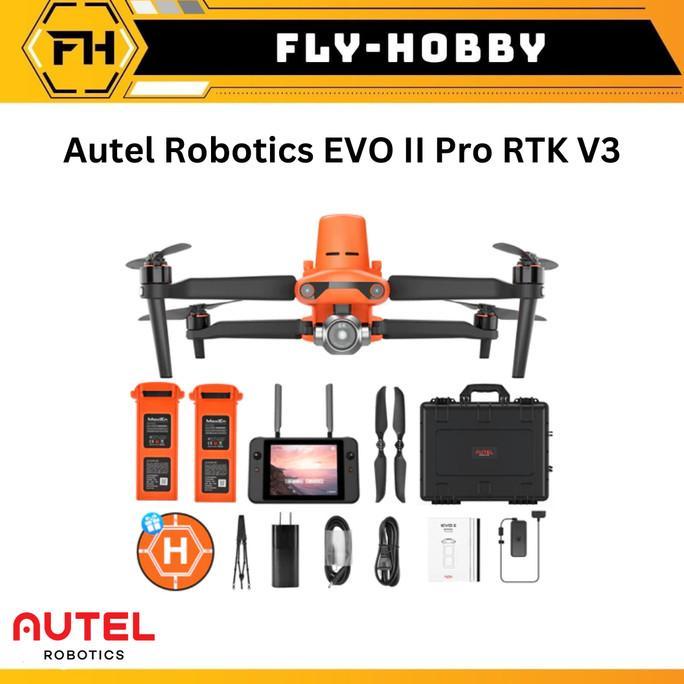

AUTEL ROBOTICS EVO II PRO RTK V3 - Paket A

VARIAN PAKET: -Paket A : Standard Box -Paket B : Standard Box+Memori 64gb Free Pair of Propeller Guards and landing pad Centimeter-Level Positioning Support PPK RTK Base Station NTRIP RTK Network Flight Profiles Save Rectangular or Polygon Missions 1 #34; CMOS Sensor Gimbal Camera 360° Obstacle Avoidance 38 Minutes Flight Time 15km Video Transmission Range Aircraft Takeoff Weight 1237g±0.5g（EVO II Pro RTK V3) Max takeoff weight 4.41 lbs (1999 g) Size(L*W*H) 9.1*5.1*5.6 inches; 230*130*143mm(folded); 18*22*4.3 inches 457*558*143 mm(unfolded) Wheelbase 15.63 inches (397 mm) Max ascent speed 8 m/s (Ludicrous) Max descent speed 4 m/s (Ludicrous) Max horizontal flight speed 20m/s (Ludicrous) Max flight distance (no wind) 21 km Max tilt angle 33° (Ludicrous) Max angular velocity 120°/s Max flight time (no wind) 36 min Max hovering time (no wind) 32 min Operating temperature range 14°F to 104°F (-10℃ ~ 40℃) Maximum resistance to wind 27mph, 12 m/s (Take-off and landing) Operating frequency 902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz Transmission power 900M FCC/ ISED：≤31dBm 2.4G FCC/ ISED：≤32dBm SRRC/CE/MIC/RCM：≤20dBm 5.8G (non-Japan) ; 5.7G (Japan) FCC/ISED/SRRC/MIC：≤33dBm CE/ RCM：≤14dBm Hovering accuracy When RTK is enabled and working normally: Vertical: ±0.1 m; Horizontal: ±0.1 m Vertical: ±0.1 m (when the visual positioning is working normally);±0.5 m (when GNSS works normally) Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GNSS works normally) Image position compensation The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively. Internal storage 8GB
