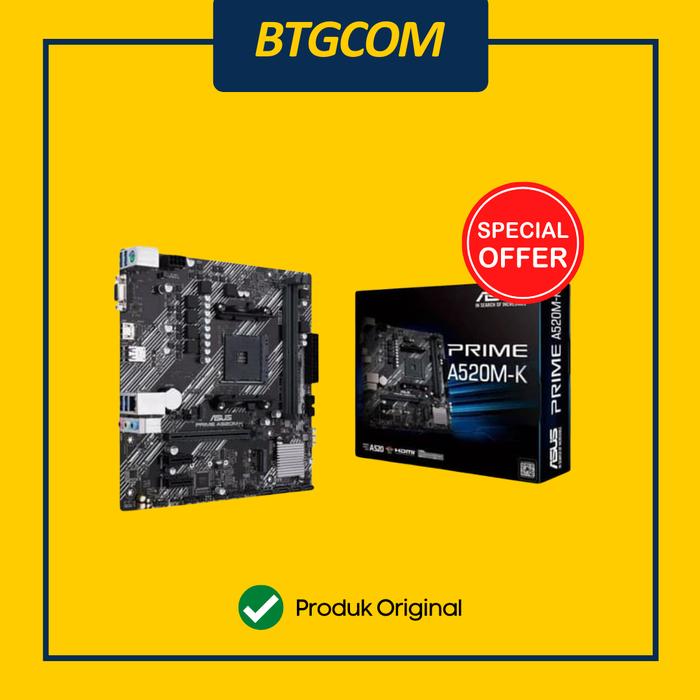

ASUS PRIME A520M-K MOTHERBOARD AMD A520 SOCKET AM4 DDR4

INFO PENTING
Tanya stok sebelum membeli.
Wajib membaca Catatan Toko.
Wajib video unboxing paket sampai selesai dibuka semua.
Tidak menerima komplain tanpa video unboxing.
Membeli berarti menyetujui ketentuan toko.
Kirim via JNE/JNT/SiCepat/Lion Parcel, wajib pakai Bubble Wrap.

SPESIFIKASI
A520M-K
CPU : Build in AMD AM4 Socket Processors *
Chipset : AMD A520
Memory : 2 x DIMM, Max. 64GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
The maximum memory frequency supported varies by processor.
Graphic : 1 x D-Sub, 1 x HDMI 2.1(4K@60HZ)
Expansion Slots :
3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1
Storage
Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
AMD A520 Chipset: 4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN: Realtek RTL8111H 1Gb Ethernet, ASUS LANGuard
Audio: Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC *
Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
Audio Shielding
Dedicated audio PCB layers
Back I/O Ports :
1 x PS/2 keyboard/mouse combo port(s)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)
BIOS : 256 Mb Flash ROM, UEFI AMI BIOS
Manageability : WOL by PME, PXE
Operating System : Windows 10 64-bit

SPESIFIKASI A520M-K/CSM
CPU
AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
Chipset
AMD A520
Memory
2 x DIMM, Max. 64GB, DDR4 4866(O.C)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Graphic
1 x D-Sub
1 x HDMI 2.1(4K@60HZ)
Expansion Slots
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1
Storage
Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
AMD A520 Chipset :
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN
Realtek RTL8111H 1Gb Ethernet
ASUS LANGuard
Audio
Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC *
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- Audio Shielding
- Dedicated audio PCB layers
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports
Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)

GARANSI
3 Tahun
