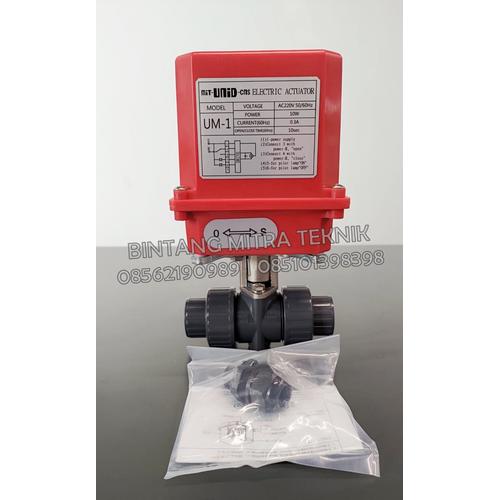

MOTORIZED BALL VALVE PVC / UPVC 3/4" WITH ACTUATOR ELECTRIC UNI-D UM-1 AC220V

BALL VALVE PVC ELECTRIC ACTUATOR
BALL VALVE PVC ACTUATOR ELECTRIC
BALL VALVE UPVC ELECTRIC ACTUATOR
BALL VALVE UPVC ACTUATOR ELECTRIC

BALL VALVE PVC TRUE UNION WITH ELECTRIC ACTUATOR
BALL VALVE PVC TRUE UNION WITH ACTUATOR ELECTRIC
BALL VALVE UPVC TRUE UNION WITH ELECTRIC ACTUATOR
BALL VALVE UPVC TRUE UNION WITH ACTUATOR ELECTRIC

SPESIKASI BALL VALVE :

SIZE : DN20 / 3/4" INCH DRAT DALAM BSPT
MATERIAL BODY : UPVC / PVC
CLASS : PN10
MATERIAL SEAT : PTFE / TEFLON
MATERIAL O-RING : EPDM
MAX PRESSURE : 10 BAR
MAX TEMPERATURE : 120'C

SPESIFIKASI MOTORIZED / ELECTRIC ACTUATOR :

MOTORIZED UNI-D
ELECTRIC ACTUATOR UNI-D

BRAND : UNI-D (ORIGINAL TAIWAN)
TYPE : UM-1
NOTE : INCLUDE BRACKET MOUNTING / SUDAH TERMASUK BRACKET UNTUK DUDUKAN VALVE
VOLTAGE : AC220V / 0.3A
POWER : 10W
MAX OPERATING PRESSURE : 10 Kg/Cm2
SPEED OPEN / CLOSE : 10 SECOND (60Hz)
Torque (±5%) kgf-cm AC220V(60Hz) : 362
