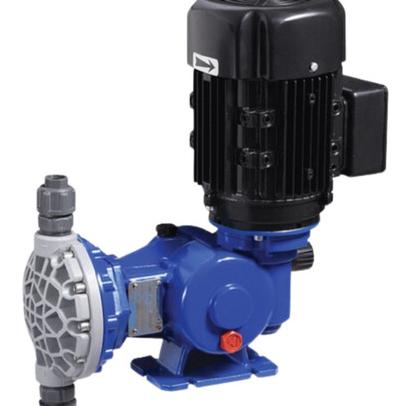

SEKO PS2EO89C31 Dosing Pump Pompa Dosing Chemical

SEKO PS2EO89C31 Dosing Pump Pompa Dosing Chemical seko ps2 pumps are plunger piston metering pumps featuring a spring return mechanism in an aluminium housing. capacity: from 40 to 1000 l/h max pressure: 20 bar stroke rate: 58 78 116 strokes/minute piston diameter: from 25 to 89 mm motor: standard 0,25 0,37 0,55 0,75 kw (ip 55) stroke length: 25 mm liquid end ss 316 or pvc pump head (standard). ss 316 or ceramic piston the material in contact with the liquid to be dosed are listed in the pump head materials table (special materials may be supplied on request). max dosage temperature - ss 316 pump head: 90 c - pvc pump head: 40 c flow rate adjustment every pump can be equipped with an electric actuator which accepts a 4-20 ma.
