DC Protection Relay 72V 96V 240V ADJUSTABLE Over Under VOLTAGE Battery

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

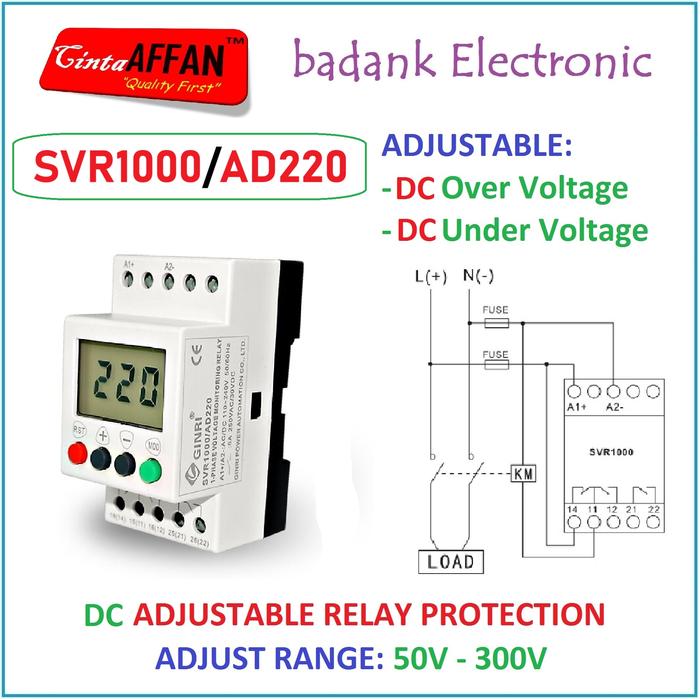

GNRI Adjustable Over Under Voltage Monitoring Relay Protection Device DIN Rail
Model : SVR1000/AD220


Applicable for RATED VOLTAGE DC 72V 96V 240V
ADJUSTABLE VOLTAGE RANGE : 50V - 300V AC/DC

FEATURES
-- Powered by the measuring circuit
-- Built-in LCD and keypad afford a precise,digital setting
-- Compact modular 43mm housing
-- Adjustable over- and undervoltage threshold
-- Independent adjustable delay time for overvoltage, undervoltage
-- 1 CO & 1NC contacts
-- Fault recording with last 3 faults

PROTECTIVE FUNCTIONS
-- Overvoltage
-- Undervoltage

TYOICAL APPLICATIONS
Pumps Fans
Blowers Motors
Compressors Solar Off Grid Inverter

TECHNICAL DATA


-- Model : SVR1000/AD220
-- Measuring circuit : A1+,A2-
-- Rated voltage : AC/DC 110~240V,50/60Hz
-- Monitoring functions : overvolatege, undervoltage
-- Overvoltage setting range : AC/DC 50.0~300.0V adjustable
-- Undervoltage setting range : AC/DC 50.0~300.0V adjustable
-- Voltage hysteresis : 1.0~90.0V adjustable
-- Delay time for overvoltage and undervoltage : 0.1-999s adjustable
-- Reset mode : Manual/ Automatic/Automatic with power-on delay
-- Delay time for reset : 0.1-999s adjustable
-- Indicators : LCD indicating voltage,operationand fault status
-- Output contacts : 1 CO & 1NC
-- Contact capacity : 6A ,250VAC
-- Dimensions (H x W x D) : 804354mm
-- Mounting : DIN rail
