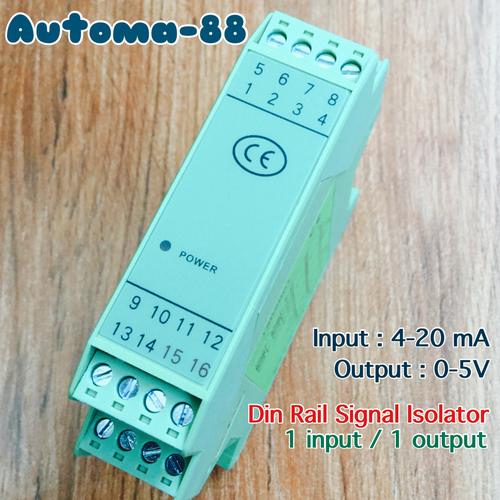

Din Rail Signal Converter isolator input 4-20mA Output 0-5V 24V DC

*** READY STOCK, SILAHKAN DI ORDER *** *** INDUSTRIAL SIGNAL CONVERTER/ISOLATOR, INPUT 4-20mA / OUTPUT 0-5V *** Technical parameters Input signal 4-20mA Distribution voltage 24V (Maximum drive current 30mA) Input impedance ≤50Ω Output signal 0-5V Output load resistance Current type: RL ≦ 500Ω; Voltage type: RL≧10KΩ Power supply DC 24V,±10%；AC 85~265V Current consumption Input --- Output (DC 24V,4~20mA): ≤50mA Accuracy 0.2%F.S Temperature drift0.2% F.S./°C Response time≤10mS (0-90%)(TYP) Insulation strength 1500VAC/1min (Input, Output, Power supply) Insulation resistance ≧100MΩ(Input, Output, Power supply) Working temperature-20~+55℃ Electromagnetic CompatibilityGB/T18268 (IEC61326-1) Field equipment Two-wire/Three-wire transmitter; current source Dimensions: 115 x 23 x 100 (mm)
