Atur jumlah dan catatan
Stok Total: 250
Subtotal
Rp10.500

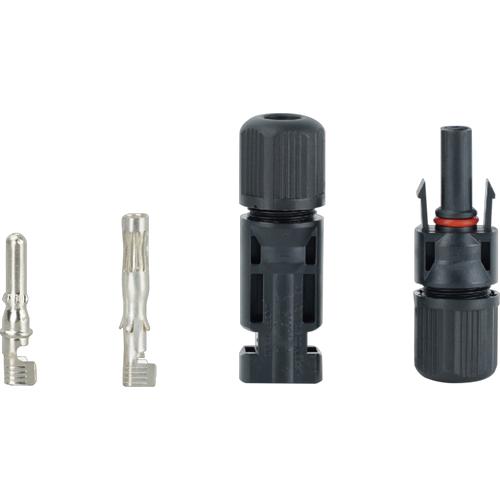

mc4 connector PV, merk CNC 4-6mm
Rp10.500
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Kabel DC dan Acc
Rated voltage 1000V DC (IEC)
Rated current 17A (1.5mm²)
22A (2.5mm²; 14AWG)
30A (4mm²; 6mm²; 12AWG, 10AWG)
Test voltage 6kV (50Hz, 1min)
Ambient temperature range -40°C...+90°C (IEC) -40°C...+75°C (UL)
Upper limiting temperature +105°C (IEC)
Protection degree, mated IP67
Touch protection level, unmated IP2X
Comtact resistance of plug connectors 0.5mΩ
Safety class II
Contact material Messing, verzinnt Copper Alloy, tin plated
Insulation material PC/PPO
Locking system Snap-in
Flame class UL-94-Vo
Salt mist spray rest, degree of severity 5 IEC 60068-2-52
Rated current 17A (1.5mm²)
22A (2.5mm²; 14AWG)
30A (4mm²; 6mm²; 12AWG, 10AWG)
Test voltage 6kV (50Hz, 1min)
Ambient temperature range -40°C...+90°C (IEC) -40°C...+75°C (UL)
Upper limiting temperature +105°C (IEC)
Protection degree, mated IP67
Touch protection level, unmated IP2X
Comtact resistance of plug connectors 0.5mΩ
Safety class II
Contact material Messing, verzinnt Copper Alloy, tin plated
Insulation material PC/PPO
Locking system Snap-in
Flame class UL-94-Vo
Salt mist spray rest, degree of severity 5 IEC 60068-2-52
