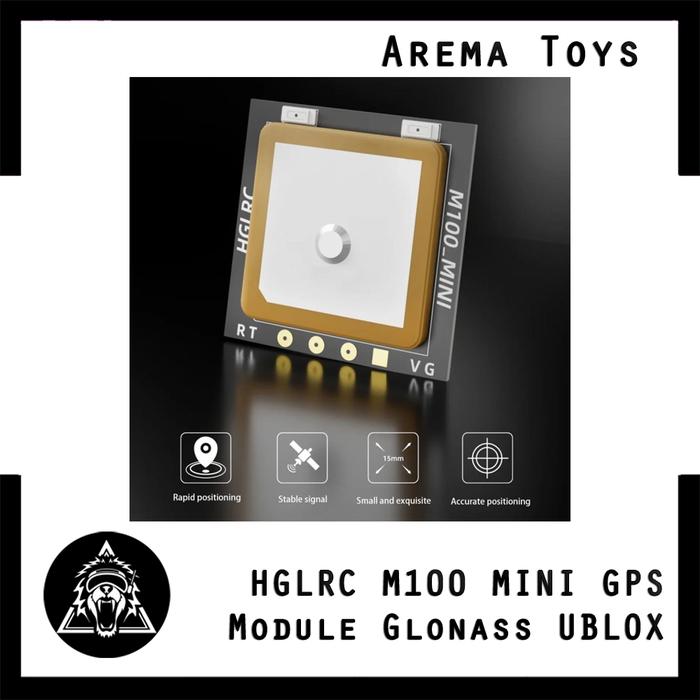

HGLRC M100 MINI GPS Module Glonass UBLOX Galileo Modul Drone FPV

Rp220.000

Kondisi: Baru
Min. Pemesanan: 1 Buah
Etalase: Semua Etalase

Features:
Using the new 10th generation UBLOX chip design, fast and accurate positioning.。
Small size, compatible with 2-7 inch traversal Drone on the market
Selected ceramic antenna and externally expanded PCB design to effectively receive satellite signals
Support GPS, Galileo, BDS three-mode positioning, fast positioning in any area
Onboard POWER and PPS indicator lights, the working status is clear at a glance
Compatible power supply, support 3.3V-5V DC power input
Using UBLOX output protocol and 10Hz output frequency

Specification:
Chip: M10(10th Generation Chip)
Antenna: Ceramic Antenna
Frequency: GPS L1，GLONASS L1，BDS B1，GALILEO E1，SBAS L1，OZSS L1
Receive Channel: 72ch
Baud Rate: 115200bps
Output Protocol: UBLOX
Output Frequency: 10Hz
Input: 3.3V-5V
Size: 15x15x5.2mm
Weight: 2.6g
Speed Accuracy: 0.05m/s
Horizontal positioning accuracy: 2D ACC2.0m(Outdoor)
Receiver Sensitivity: Trace -166dBm
Capture -160dBm
Characteristics: High:50000m，
Speed: 500m/s，
acceleration 4G
Operating temperature: -40°C - +85°C
Storage temperature: -40°C - +105°C

Include:
HGLRC M100_MINI GPS X1
Heat Shrink Tube (Φ12mm x 20mm) X1
HGLRC sticker X1
HGLRC Manual X1
SH1.0-4Pin Cable X1
